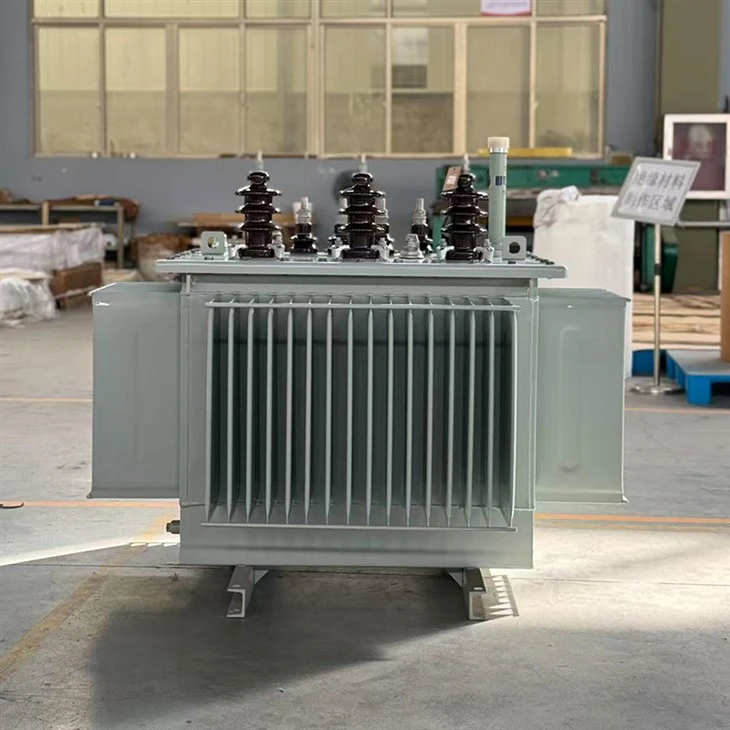

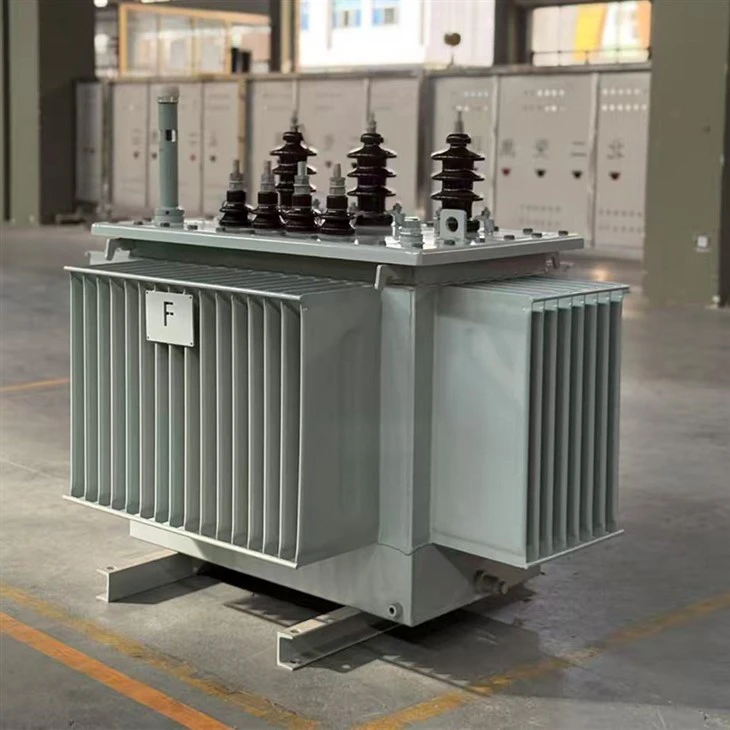

250 Kva Oil-filled Transformer

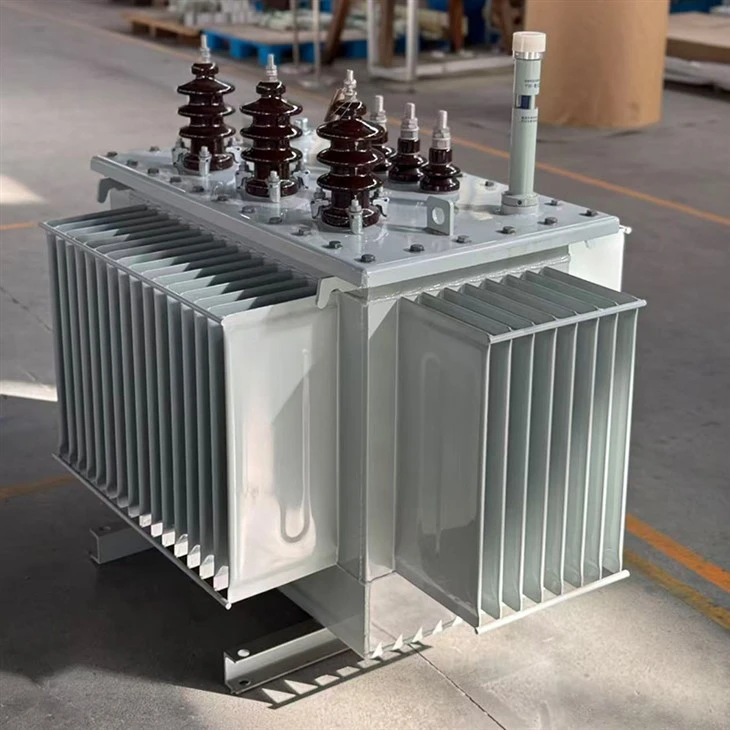

250 Kva Oil-filled Transformer

Details
• Coil Material: Copper
• Primary Voltage: 11kV
• Working Efficiency: 50HZ
• Sealed type oil immersed distribution transformer
• Low loss transformer
Category
Oil-Filled Transformer
Share to
Send Inquiry
Description
Technical Parameters

Product Overview



The 250 kVA oil-immersed distribution transformer is engineered with high-permeability silicon steel cores and precision-wound copper coils, delivering exceptional energy efficiency with minimal no-load and load losses. Built in strict accordance with IEC 60076 standards, it utilizes high-dielectric mineral oil within a hermetically sealed tank equipped with corrugated cooling fins for optimal heat dissipation and severe short-circuit withstand capability. Integrated with off-circuit tap changers and multi-stage pressure relief safety systems, this compact unit offers robust structural durability, low operational noise, and long-term voltage stability under continuous medium-to-low voltage distribution loads.

1

250 Kva Oil-filled Transformer







Technical Specifications



Parameter

Standard Specification

Product Name

250 kVA Oil-Filled Transformer

Transformer Type

Three-Phase Oil-Filled Distribution Transformer

Rated Capacity

250 kVA

Number of Phases

Three-phase

Rated Frequency

50 Hz

Rated Primary Voltage

11 kV

Rated Secondary Voltage

0.415 kV

HV Tapping Range

±2 × 2.5%, 5 positions

Tap-Changing Method

De-energized tap changing

Vector Group

Dyn11

Short-Circuit Impedance

4.0%

No-Load Current

≤1.8%

Cooling Method

ONAN

Insulating Liquid

PCB-free mineral insulating oil

Winding Material

Copper

Core Material

Cold-rolled grain-oriented silicon steel

Winding Temperature Rise

65 K

Tank Construction

Hermetically sealed corrugated tank or radiator tank

Protection and Monitoring

Pressure-relief device, liquid-level indication, oil-temperature indication, and earthing terminals

Installation

Outdoor installation, continuous duty

Service Conditions

Maximum ambient temperature: 40°C; maximum altitude: 1,000 m

Certification Standards

Available according to IEC, IEEE/ANSI, DOE (where applicable), CSA, CE/EN, UKCA, GOST/EAC, SASO/SABER, SONCAP, ISO, and other required certification schemes







Advantages of CHBEB 250 kVA Oil Immersed Transformer



CHBEB 250 kVA oil immersed transformers are engineered for robust continuous power distribution and high thermal stability in demanding environments.

Heavy-Duty Load Management

Operating as a dedicated power source for standalone facilities, the transformer manages substantial continuous currents at approximately 360A at 400V. Its high thermal inertia and the specific heat capacity of the mineral oil allow the unit to absorb heat during temporary industrial motor startup overloads without triggering immediate alarms.

Advanced Winding Technology

Utilizing low-voltage foil winding technology for the low-voltage coils, the design virtually eliminates destructive axial forces during short-circuit events by balancing the ampere-turns across the full width of the copper or aluminum foil. This structure also maximizes conductor-to-insulation contact area to optimize heat transfer to the surrounding oil.

Protection and Monitoring

Equipped with essential monitoring devices, the tank features a dial-type oil thermometer for direct top-oil temperature visualization. For enhanced safety, a pressure relief valve activates if internal pressure exceeds safe limits between 0.30 and 0.35 bar due to a fault, effectively preventing tank rupture.

1
Protective Film-Wrapped 250 kVA Oil-Filled Transformer Ready for Hoisting
2
Precision-Assembled Transformer Core and Active Part for 250 kVA Oil-Filled Transformer
3
Technical Specification and Identification Nameplate for 250 kVA Oil-Filled Transformer
4
Schematic Diagram of the Structure of CHBEB 250 kVA Oil-Filled Transformer







Applications of 250 kVA Oil Immersed Transformer



• Schools and Hospitals
Providing continuous, low-noise power for facility lighting, HVAC infrastructure, and sensitive institutional equipment.
• Small & Medium Factories
Delivering stable power for dedicated automated production lines, multi-motor workshops, and light industrial machinery.
• Shopping Centers & Supermarkets
Supplying dedicated, high-efficiency power for commercial refrigeration systems, escalators, and building management networks.
• Commercial Office Buildings
Stepping down medium voltage to support steady 360A continuous current loads for elevators, HVAC, and office lighting grids.
• Agricultural & Irrigation Facilities
Powering heavy-duty water pumping stations, automated irrigation systems, and agricultural processing facilities.
• Residential Communities & Subdivisions
Serving as a reliable underground or pad-mounted distribution step-down transformer for residential energy delivery.
• EV Charging Hubs
Providing robust power conversion for commercial fast-charging stations and fleet charging infrastructure.
• Light Logistics & Warehousing Hubs
Ensuring uninterrupted electrical supply for automated material handling, sorting conveyors, and warehouse climate control.
5
250 kVA oil immersed transformer providing reliable power supply for commercial buildings and schools.







Quality Control & Testing Engineering of CHBEB Oil-Filled Transformers



• Incoming Material Verification
We source premium raw materials from certified global leaders like Baowu Steel and DuPont Nomex. Silicon steel, copper conductors, and insulating oil undergo strict testing for core loss, purity, and dielectric strength per GB/T 2521 and IEC 60641 standards.
• In-Process Manufacturing Control
Core laminations are processed on automated CNC lines with step-lap stacking to ensure high precision and minimize noise. Automated tension-controlled winding guarantees structural rigidity, insulation integrity, and high short-circuit withstand capability.
• Vacuum Drying & Degassed Oil Filling
The core-and-coil assembly undergoes deep vacuum drying to eliminate moisture prior to tanking. Filtered and degassed high-dielectric mineral oil is injected under vacuum, achieving ultra-low partial discharge and extending insulation lifespan.
• Factory Testing & Global Certification
Each unit undergoes 100% routine testing compliant with IEC 60076 and IEEE C57.12.00-including resistance, ratio, impedance, impulse, and seal integrity tests. Certified by KEMA, CQC, ISO 9001/14001/45001, and CE, products are securely packed for global dispatch.

Quality Control







Why Choose CHBEB for Your Global Electrical Projects



As a premier manufacturer of medium- and high-voltage power equipment, CHBEB delivers high-reliability grid infrastructure and proven engineering excellence to clients worldwide.



• Tailored Engineering & Customization
We deliver end-to-end bespoke solutions tailored to specific project requirements and regional grid codes. Our engineering team customizes core specifications-including voltage ratios, impedance levels, vector groups, enclosure protection ratings, and special anti-corrosion coatings-ensuring seamless integration into unique operating environments.
• Global Distributor & Partner Ecosystem
We build long-term, high-growth partnerships with global distributors, EPC contractors, and equipment dealers. CHBEB provides flexible OEM/ODM collaboration, competitive direct-factory pricing, priority lead times, and full technical documentation to empower our local partners in winning tenders and expanding market share.
• End-to-End Manufacturing & Authority
Operating from our state-of-the-art 30,000+ square meter production base, we maintain total control over every step of fabrication-from precision CNC core lamination to automated winding and deep-vacuum oil processing. This complete in-house manufacturing capability guarantees superior structural integrity, tight lead times, and continuous supply chain stability.
• Continuous R&D & Technological Innovation
Driven by dedicated engineering teams and advanced simulation software, we continuously advance transformer performance through thermal modeling, electromagnetic design, and structural optimization. Our ongoing investments in R&D ensure higher efficiency, lower total cost of ownership, and cutting-edge solutions for evolving modern power grids.

CHBEB







FAQ



Q: What is the minimum order quantity (MOQ) for 250 kVA oil-filled transformers?

A: The MOQ is 10 units. We support bulk orders for distributors, contractors, and power distribution projects.

Q: What is the typical lead time for a bulk order of 250 kVA oil-filled transformers?

A: The regular delivery cycle is approximately 3–6 weeks, depending on order quantity and production scheduling. Buyers are advised to plan their procurement schedules in advance.

Q: What is the expected service life of a 250 kVA oil-filled transformer?

A: With proper maintenance and suitable operating conditions, our oil-filled transformers can have a service life of 30 years or longer. Regular inspections and maintenance help ensure long-term operating reliability.

Q: What technical information should buyers provide when requesting a quotation?

A: Buyers should provide the required rated voltage, frequency, phase configuration, connection requirements, and other project-specific electrical parameters. This allows us to evaluate the application requirements and prepare a suitable quotation.

Q: Can multiple 250 kVA transformers be purchased for the same distribution project?

A: Yes. We accept bulk orders starting from 10 units. Buyers can provide their project quantities and technical requirements for production and delivery coordination.





Hot Tags: 250 kva oil-filled transformer, China 250 kva oil-filled transformer manufacturers, suppliers, factory, 100 Kva Oil-filled Transformer, 3750 Kva Oil-filled Transformer, 6000 Kva Oil-filled Transformer, 500 Kva Oil-filled Transformer, 4000 Kva Oil-filled Transformer, 1250 Kva Oil-filled Transformer
