Built with sealed enclosures, our pad-mounted transformers ensure superior protection against corrosion, moisture, and dust, delivering reliable performance in harsh outdoor environments. CHBEB's pad-mounted distribution transformers are conformed to IEC, IEEE, ГОСТ-Р, GB17467, DL/T537, IEC 62271-202, IEC 60076 ensuring reliable performance across power networks.



Structure Features

Enclosure and Frame Structure

• The cabinet frame is welded from channel steel and angle steel, providing high mechanical strength.
• The enclosure is made of aluminum alloy plates with a smooth surface, elegant appearance, and excellent corrosion resistance.
• The base is elevated 300–600 mm above the foundation, enhancing durability and protection.

Doors and Safety Design

• All doors open outwards with an opening angle greater than 90° and are equipped with positioning devices.
• Each door comes with a handle, hidden latch, and locks that are waterproof, jam-proof, and rust-resistant.
• A sealed, theft-proof structure ensures safe and reliable operation.

Ventilation and Heat Dissipation

• Designed with natural ventilation and heat insulation measures to ensure that the temperature rise of equipment remains within permissible limits during long-term operation.
• Even under continuous heavy load at normal ambient temperature, reliable cooling performance is maintained.

Grounding and Protection System

• Equipped with a dedicated grounding conductor and no fewer than two fixed grounding terminals for connection to the grounding grid.
• The grounding terminals use copper bolts with a diameter of ≥12 mm, while the grounding conductor is made of copper strips with a cross-sectional area of ≥30 mm².
• This design ensures no overheating occurs under maximum short-circuit current, while providing excellent dynamic and thermal stability.

Identification and Monitoring

• The enclosure is fitted with a nameplate displaying capacity, voltage, frequency, serial number, and certification details.
• Optional monitoring windows or inspection ports allow for convenient checking of oil level and operating conditions.

Request A Brochure





CHBEB Pad Mount Transformer Portfolio





Discover our standard pad-mounted transformers, featuring a compact design and easy installation,

available in both single-phase and three-phase configurations.



First 123 Last



Technical Specifications





As a professional pad mounted transformer supplier, we provide oil filled pad mounted transformers with clear

specifications and the ability to customize capacity, voltage, and design details for your project.



Item

Specification

Rated Capacity

50 kVA – 2500kVA (Customizable)

Phase

Single-phase / Three-phase

Coil Material

Copper / Aluminum

Primary Voltage

10kV

Secondary Voltage

0.4kV

Frequency

50 Hz / 60 Hz

Structure Type

Oil-immersed / Dry-type

Cooling Method

Oil immersed self-cooling, ONAN, ONAF

Installation Method

Ground-mounted

Enclosure Material

Aluminum alloy

Protection Grade of Box Shell

IP43

Base Height

300 - 600 mm

Operating Temperature

-35°C to +40°C

Insulation Class

H

Design Life

20 - 30 years

Noise Level

≤50 dB

Note: When ordering this product beyond the above conditions, please consult with our company.





Quality & Safety Assurance

As a professional pad-mounted transformer manufacturer, CHBEB controls every stage of manufacturing and testing to ensure each product operates with consistent stability under harsh outdoor conditions and continuous load service.

Engineering Design
Our pad-mounted transformers are designed in accordance with IEC or IEEE standards, using high-permeability materials such as premium silicon steel. The enclosures are made of corrosion-resistant aluminum alloy with weatherproof coatings, ensuring long-term durability in outdoor environments.

Comprehensive Tests
Before delivery, each unit undergoes a full set of factory tests at our in-house testing center, including power frequency withstand voltage test, lightning impulse test, temperature rise test, partial discharge and insulation resistance tests, as well as oil dielectric strength and leakage tests.

Protection & Monitoring System

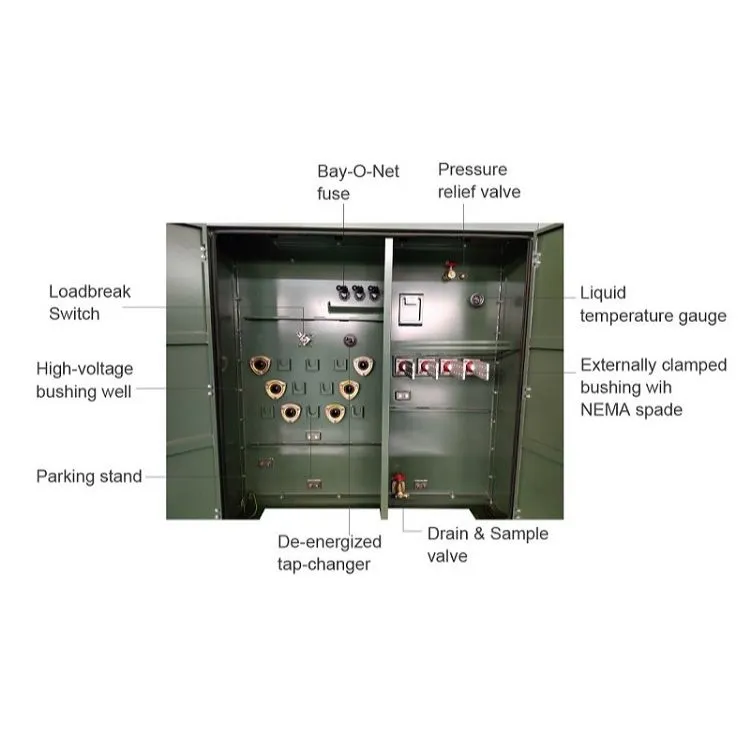

Each pad-mounted transformer integrates protective components such as pressure relief valves, vacuum pressure gauge, oil drain valves, and oil level indicators. Optional monitoring systems enable real-time temperature and pressure tracking for preventive maintenance.

Certified & Traceable Quality
CHBEB follows ISO 9001-certified quality management and ISO 14001 environmental management systems. The production records and test reports are traceable, ensuring that every transformer delivered can receive complete after-sales support.





FAQ





Q: What are the main applications of pad-mounted transformers?

A: With advantages such as compact size, easy operation, flexible configuration, reliable and safe performance, and high efficiency, pad-mounted transformers are widely used across various industries and have become indispensable equipment in modern power engineering projects.
Here are some specific applications of pad mounted transformers:
Urban Power Distribution Networks: They are used in residential districts, schools, hospitals, shopping malls, and office buildings for voltage transformation and power distribution.
Industrial Parks and Factories: They provide a dedicated power supply for production lines, workshops, and facility operations.
Temporary Construction Sites: They supply temporary power for infrastructure projects, building construction, and road works.
Rural Grid Upgrades: They improve voltage stability and power supply reliability in villages and towns.
New Energy Integration: They serve as boosting stations for photovoltaic (solar) power plants and wind farms.
Railways and Urban Rail Transit: They provide auxiliary power for subway stations, high-speed rail stations, and along electrified railway lines.
Ports, Airports, and Other Large Facilities: They are used for distributed power supply within these large areas.
Commercial Complexes and High-Rise Buildings: They function as distribution transformers within the building's power supply system.

Q: How can I get a quotation for a pad-mounted transformer?

A: You can contact us directly with your required capacity, voltage, and application details. Our sales engineers will provide a tailored technical proposal and quotation within 24 hours.

Q: What is the minimum order quantity (MOQ)?

A: The minimum order quantity (MOQ) for our standard pad-mounted transformers is one unit. For customized models, the MOQ depends on the specifications and project requirements. Please contact us to discuss your specific needs.

Q: What is your typical lead time for delivery?

A: For standard transformers, delivery typically takes 30 days. Custom projects may require longer, depending on your specific requirements.

Q: Do you provide project support or installation guidance?

A: Yes. We can provide installation manuals, technical guidance, and remote support for your project team.

Q: Can you provide references or case studies of past transformer projects?

A: Yes, we have completed a wide range of transformer projects globally and can provide project references upon request.

Q: What is your technical support or after-sales service?

A: We provide a 2-year warranty and remote support for installation, commissioning, and troubleshooting for the lifetime of the transformer.



We are one of the most experienced pad mounted transformer manufacturers and suppliers in China since 1956, specialized in providing high quality products and service for global clients. We warmly welcome you to wholesale custom made pad mounted transformer from our factory.
